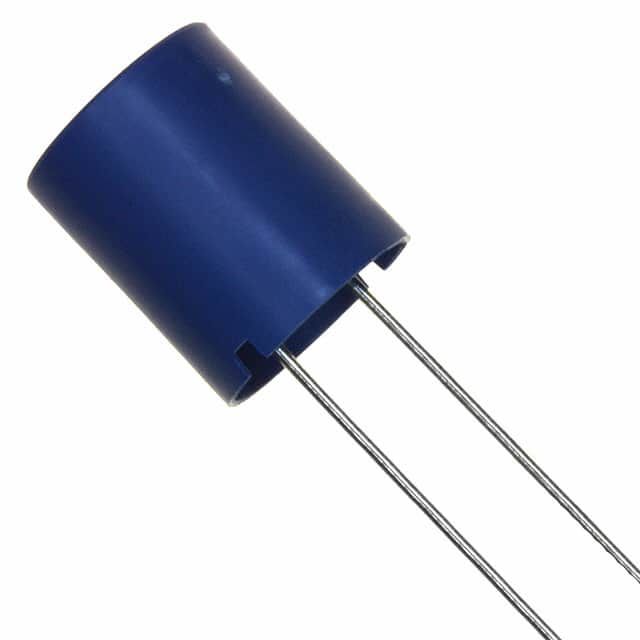

TSL1315RA-101K2R5-PF
nhà sản xuất:
Tập đoàn TDK
Mô tả:
TSL1315RA-101K2R5-PF datasheet pdf and Fixed Inductors product details from TDK Corporation stock available at Rozee
Nhóm:
Động lực, cuộn dây, choke
Thông số kỹ thuật
Part Number:
TSL1315RA-101K2R5-PF
Manufacturer:
TDK Corporation
Description:
In stock. Alternative models available.
Lifecycle:
New from this manufacturer
Delivery:
DHL、UPS、FedEx、Registered Mail
Payment:
T/T Paypal Visa MoneyGram Western Union
More Information:
TSL1315RA-101K2R5-PF More Information
ECAD:
Request Free CAD Models
Pricing(USD):
$0.00
Remark:
Manufacturer: TDK Corporation.
Rozee is one of the Distributors.
Wide range of applications.
Mount:
Through Hole
Length:
17 mm
Q Factor:
50
Shielding:
Unshielded
DC Current:
2.5 A
Lead Pitch:
7.5 mm
Case/Package:
Radial
Max DC Current:
2.5 A
Lead/Base Style:
Radial
Saturation Current:
3.9 A
Height - Seated (Max):
16.9926 mm
Max Operating Temperature:
85 °C
Products Category:
Inductors, Coils, Chokes - Fixed Inductors
Qty:
346 In Stock
Applications:
Hybrid, electric & powertrain systems
Data center & enterprise computing
Portable electronics
Height:
17 mm
Diameter:
14 mm
Packaging:
Cut Tape (CT)
Tolerance:
10 %
Inductance:
100 µH
Termination:
Radial
Current Rating:
2.5 A
Test Frequency:
1 kHz
Military Standard:
Not
DC Resistance (DCR):
97 mΩ
Self Resonant Frequency:
3.3 MHz
Min Operating Temperature:
-20 °C
Số mô hình:
TSL1315RA-101K2R5-PF
Lời giới thiệu
TSL1315RA-101K2R5-PF Overview\\nTSL1315RA-101K2R5-PF is a model belonging to the Fixed Inductors subcategory under Inductors, Coils, Chokes. For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have TSL1315RA-101K2R5-PF high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensively.
