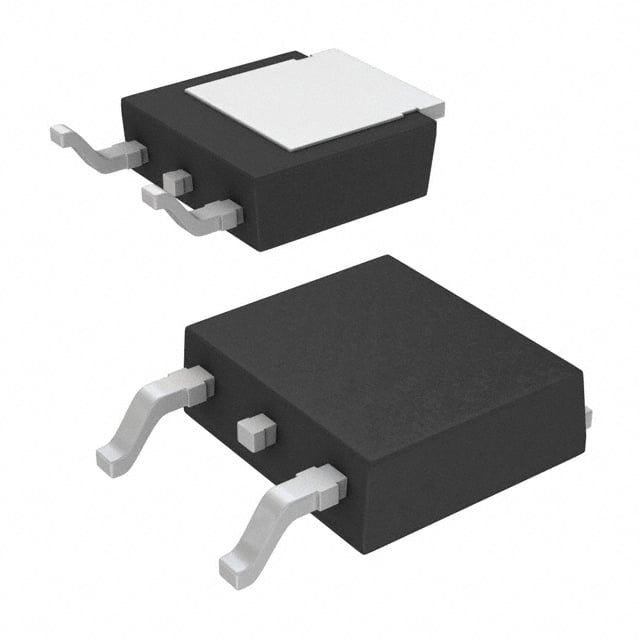

IPS1011RPBF
Mô tả:
IPS1011RPBF datasheet pdf and PMIC - Power Distribution Switches, Load Drivers product details from Cypress Semiconductor stock available at Rozee
Nhóm:
Các mạch tích hợp (IC)
Thông số kỹ thuật
Part Number:
IPS1011RPBF
Manufacturer:
Cypress Semiconductor
Description:
In stock. Alternative models available.
Lifecycle:
New from this manufacturer
Delivery:
DHL、UPS、FedEx、Registered Mail
Payment:
T/T Paypal Visa MoneyGram Western Union
More Information:
IPS1011RPBF More Information
ECAD:
Request Free CAD Models
Pricing(USD):
$0.00
Remark:
Manufacturer: Cypress Semiconductor.
Rozee is one of the Distributors.
Wide range of applications.
Mount:
Surface Mount
Height:
2.3876 mm
Fall Time:
70 µs
Rise Time:
50 µs
Nominal Vgs:
1.7 V
Case/Package:
DPAK
Current Rating:
18 A
Output Current:
18 A
Clamping Voltage:
36 V
Number of Outputs:
1
Threshold Voltage:
1.7 V
Max Supply Voltage:
5.5 V
Dual Supply Voltage:
28 V
Max Power Dissipation:
2.5 W
Max Operating Temperature:
150 °C
Output Current per Channel:
6 A
Max Junction Temperature (Tj):
150 °C
Products Category:
Integrated Circuits (ICs) - PMIC - Power Distribution Switches, Load Drivers
Qty:
483 In Stock
Applications:
Infotainment & cluster
Factory automation & control
Mobile phones
Width:
6.22 mm
Length:
6.7056 mm
Interface:
On/Off
Resistance:
10 mΩ
Termination:
SMD/SMT
Power Rating:
2.5 W
Number of Pins:
3
Output Voltage:
28 V
Fault Protection:
Over Temperature
Power Dissipation:
2.5 W
Max Output Current:
6 A
Min Supply Voltage:
4.5 V
Output Configuration:
Low Side
Operating Supply Voltage:
5.5 V
Min Operating Temperature:
-40 °C
Continuous Drain Current (ID):
6 A
Drain to Source Voltage (Vdss):
36 V
Số mô hình:
IPS1011RPBF
Lời giới thiệu
IPS1011RPBF Overview\\nIPS1011RPBF is a model belonging to the PMIC - Power Distribution Switches, Load Drivers subcategory under Integrated Circuits (ICs). For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have IPS1011RPBF high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensiv
